Set screw DIN 913 - M6 x 30 - High tensile steel
Standard: DIN 913
Diameter: M 6
Length: 30 mm
Material/Quality: high tensile steel / strength class 45H
Drive: hexagon socket
Attention!

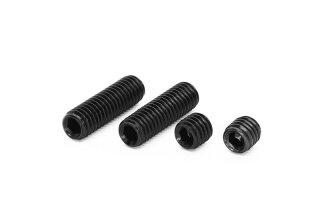

For detailed dimensions and further informations please have a look at the pictures and the "Standard" tab!
(The illustrated article pictures are sample illustrations and demonstrate form and colouring. Dimensions and material may differ. The article description is valid.)
Also known as:
cylinder head screw, cylinder screw, cap screw, socket hexagon drive internal, Allen screws, cheese-head screw, socket head screw, Allen screw, DIN 912
Set screw with flat point in accordance to DIN 913 / ISO 4026
for pressure load only!
strength category 45H
Measure (Drawing see above) :
| s |
= |
|
wrench size with hexagon socket |
| dp max.
|
= |
|
diameter of flat point |
| t1
|
= |
|
minimum depth of key above the dotted stepped line |
| t2
|
= |
|
minimum depth of key below the dotted stepped line |
