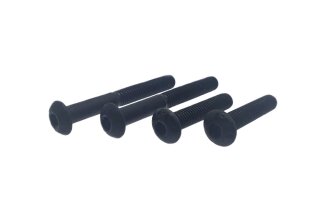

Round-head screw ISO 7380-1 M2.5 x 12 - Steel 10.9
Standard: ISO 7380-1
Diameter: M 2,5
Length: 12 mm
Material/Quality: steel 10.9
Surface: blank
Drive: hexagon socket
Attention!
For detailed dimensions and further informations please have a look at the pictures and the "Standard" tab!
(The illustrated article pictures are sample illustrations and demonstrate form and colouring. Dimensions and material may differ. The article description is valid.)
Also known as:
Half round head screw, flathead screws Lense head screw, Round-head screw, Lense screw, with hexagon
Button head / Pan head screw ISO 7380 -1/-2
with hexagon or hexalobular (6lobe/TX) socket
ISO 7380-1 with normal button head , ISO 7380-2 with button head with flange
Mit Regular thread. The pitch is therefore not stated explicitly.
Measure (Drawing see above) :
| dk
|
= |
|
diameter of head (7380-1) |
| dc
|
= |
|
diameter of head (7380-2) |
| k |
= |
|
height of head |
| s |
= |
|
wrench size with hexagon socket |
| ISR |
= |
|
wrench size with hexalobular (6lobe/TX) socket |
