Cylinder screw DIN 912 - M4 x 40 - Stainless steel A2
Standard: DIN 912
Diameter: M 4
Length: 40 mm
Material/Quality: stainless steel A2
Surface:
Drive: hexagon socket
Attention!
For detailed dimensions and further informations please have a look at the pictures and the "Standard" tab!

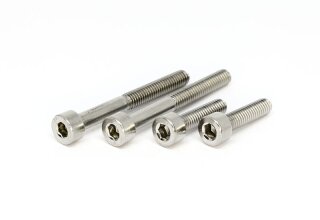

(The illustrated article pictures are sample illustrations and demonstrate form and colouring. Dimensions and material may differ. The article description is valid.)
Also known as:
cylinder head screw, cylinder screw, cap screw, socket hexagon drive internal, Allen screws, cheese-head screw, socket head screw, Allen screw, DIN 912
Cylinder head screws with hexagon and hexalobular (6lobe/TX) socket in accordance with DIN 912
Cylinder screw with hexagon socket in accordance with ISO 4762
Cylinder screw with hexalobular (6lobe/TX) socket in accordance with ISO 14579
Dimension (Drawing see above) :
| dk
|
= |
|
diameter of head |
| k |
= |
|
height of head |
| s |
= |
|
wrench size with hexagon socket |
| ISR |
= |
|
wrench size with hexalobular (6lobe/TX) socket |
| n/a |
= |
|
socket type not available in this size |
| b*
|
= |
|
max length of thread (can be differ due to production issues/i.e. being longer) |
Attention!
* If you need a special length for shaft or thread, please contact us before ordering!
